Oscilloscope pour Windows v. 2.51

Oscilloscope for Windows uses the sound card as an analog-to-digital
converter, providing complete oscilloscope and spectrum analyzer
functionality in Windows95/98/ME/XP environment.

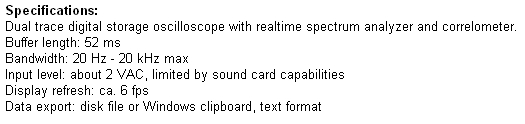

Specifications:
- Dual trace digital storage oscilloscope with spectrum analyzer
- 20 Hz - 20 kHz bandwidth
- 50 ms buffer length
- data export to Windows clipboard or to file (text format)

Features:
- single and dual trace mode
- XY mode (Lissajous patterns)
- point-and-click waveform and spectrum meter functions
- cross-correlation coefficient measurement
- storage tube emulation
- pretrigger view and armed triggering

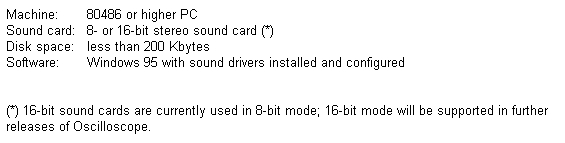

System requirements:
- 80486 or higher PC running Windows95
- any sound card with drivers installed
- 300 kbytes disk free space during installation, 150 kbytes for operation
